Conformal thin films for curved and freeform optics
Emerging optics, such as those in mobile phone cameras, AR/VR goggles and LiDAR devices, reach the limits of traditional PVD technologies and demand optical coatings with conformality only achievable by ALD.
Coating complex optics made easy. Current optical coating methods are well-established for low cost, tolerable process temperature and high throughput. However, traditional PVD coating technologies lack high conformality, making emerging microstructured, curved and freeform optics difficult to coat. For coating complex optics, ALD provides advantages over PVD, like precise thickness control and uniformity, without sacrificing film performance.

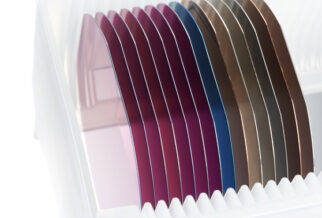

At Beneq, we have optimized conformal optical coating deposition at the intersection of uniformity, batch size and deposition rate. ALD is suitable for all types of optical coatings including:

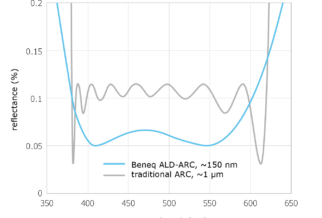

Antireflective (AR) optical coatings
Highly reflective and highly absorbing coatings
Bandpass, bandstop and edge-pass filters
Waveguide cladding, core or strain layers
Transparent conductive oxides
Silicon test structure

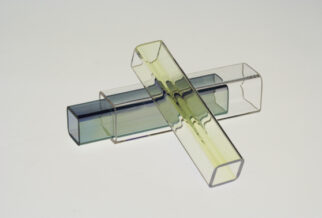

Perfectly conformal ALD film stack on silicon test structure. ALD is also commonly used for coating waveguides and custom laser optics.

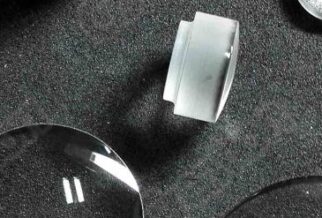

Curved lenses
With ALD, it is simple and easy to coat highly curved, aspheric lenses with the same reflection or transmission values across the entire surface.
BENEQ P400A

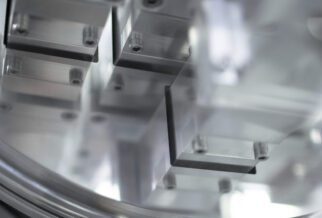

Beneq P400A

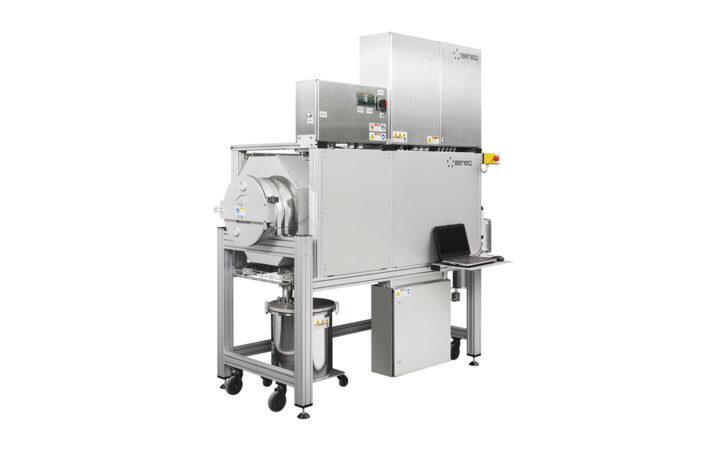

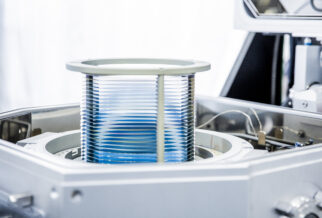

Designed for the perfect balance between uniformity and throughput. Despite a lower deposition rate than PVD, ALD enables you to coat your optics in much larger batches. ALD processes coat entire components conformally, giving you unparalleled uniformity and throughput compared to PVD. The Beneq P400A is optimized at the intersection of uniformity, batch size, and deposition rate to deliver you the highest quality thick films. We provide you with expertise and software to design every individual ALD layer for the best performance in the context of your design constraints.

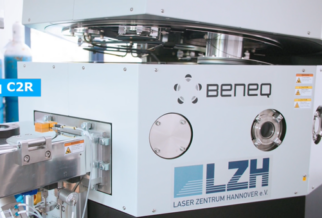

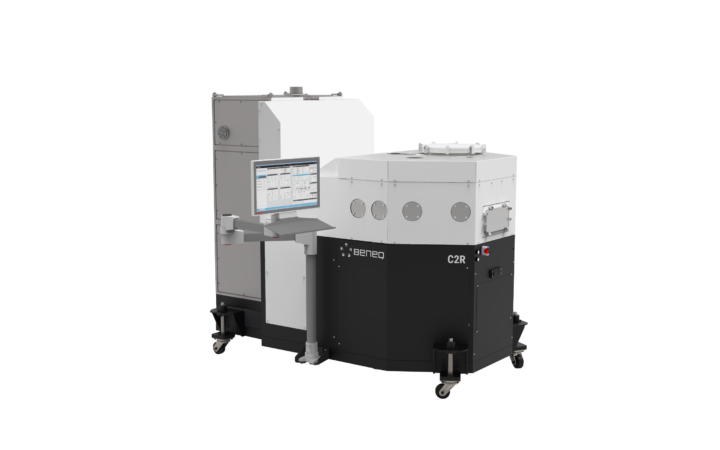

Ultra-fast high precision spatial ALD coatings. Beneq C2R provides an optimal solution for high throughput ALD in volume production of optical coatings.
With deposition rates up to 1 µm/hour and plasma capabilities, the Beneq C2R is the ideal product when speed, cost, low process temperature, and the highest possible film quality are the driving factors.
The challenge when coating 3D optics is to deposit the coating with high uniformity over an arbitrary topology in a simple manner. The common techniques used for optical coatings, including magnetron sputtering, evaporation, electron beam evaporation (EBE) and ion beam sputtering (IBS), all so called line-of-sight methods.
