Beneq, the home of Atomic Layer Deposition (ALD), and Lazer Zentrum Hannover (LZH) have developed a spatial ALD system to coat complex and 3D optics with conformal optical films at deposition rates of up to 1 µm/hour, marking a crucial milestone for volume manufacturing with ALD. Emerging optics, such as those in mobile phone cameras, AR/VR goggles and LiDAR devices, demand antireflective coatings with better conformality than achievable with traditional Physical vapor deposition (PVD) processes.

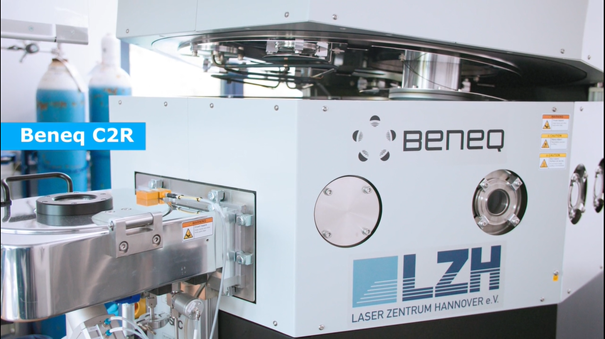

Beneq’s C2R ALD system successfully achieves deposition rates 100 times faster than typical ALD processes and is on par with the current PVD state-of-the-art, like ion beam sputtering (IBS). The speed of the C2R is a breakthrough in making ALD viable for production scale coatings in the optics industry.

ALD enables coatings on emerging optics

With the Beneq C2R, LZH expanded their coating capabilities to include ALD in order to address a new trend of emerging optics that surpass the manufacturing limits of PVD technologies. The self-limiting nature of ALD allows precise control of film thickness and highly conformal coatings on structured, curved and freeform surfaces.

“Spatial ALD with the Beneq C2R addresses the deposition speed and film performance challenges presented by coating next-generation optics,” says Sami Sneck, VP of Advanced ALD at Beneq. “It is poised to help bring high volume manufacturing with ALD to the forefront of the optical coating industry.”

ALD easily translates to optical coatings

Currently, LZH is coating optical grating structures and polymer optical lenses for use in virtual and augmented reality glasses with the spatial ALD approach.

“We were surprised by ALD’s simple adaptation to optical coatings,” says LZH’s Head of Optical Components Department, Dr. Andreas Wienke. “With classical PVD processes, it’s nearly impossible to achieve a conformal coating on a strongly curved surface with the same reflection or transmission values over the whole area. With ALD, it is so simple and easy to achieve.”

Deepening collaboration primes tool for industry adoption

LZH and Beneq’s collaboration continues, and LZH recently implemented their own in-situ monitoring tool to improve the C2R’s capabilities. The system allows real-time monitoring of layer growth and the ability to swiftly re-engineer coatings, yielding very precise and reproducible thin films.

“With the new BBM and other additional features, we are raising the bar for what is attainable with ALD in the optical coatings industry,” says Mr. Sneck.

Watch the video that gives deeper insight into the cooperation between LZH and Beneq.
