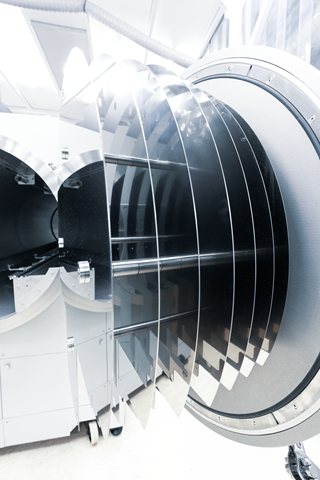

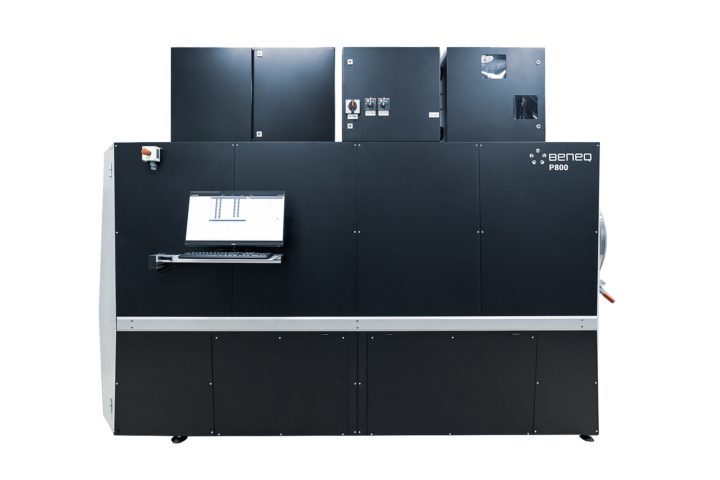

ALD system for large batches and large parts
The Beneq P800 is specifically designed to coat big parts of complex shapes or large batches of smaller parts. Our customers use the P800 for optical coatings, anticorrosive coatings of semiconductor equipment parts, and various applications where ALD is used on glass or metal sheets.
Large parts need large ALD tools. The Beneq P800 is commonly used for batch of parts with diameter larger than 600mm. The large batch capability can also reduce the cost for smaller parts making ALD commercially feasible across many application areas.
Every customer is unique. We select and design the optimal tool setup and ALD process based on each customer’s substrate and application. The P800’s design makes it easy to switch among different setups of reaction chambers and substrate holders. This built-in versatility means you can smoothly transition from R&D to volume production using the same ALD system. Beneq provides tailored application development as well as pilot production support, so you can test things out before setting up your own ALD manufacturing capacity.

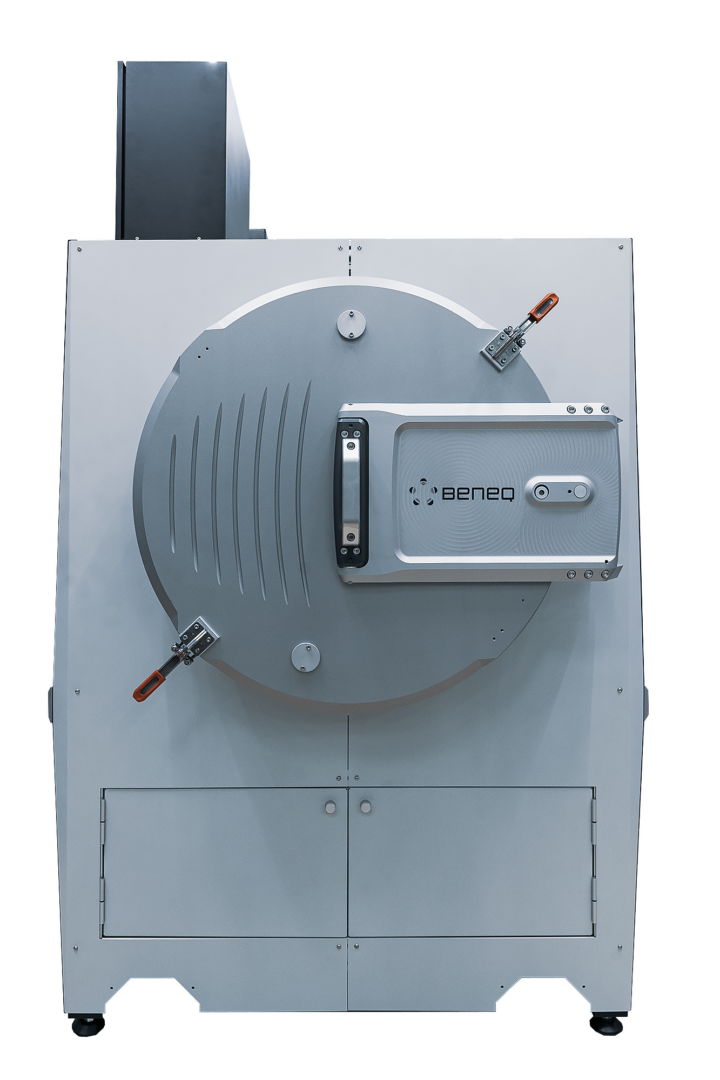

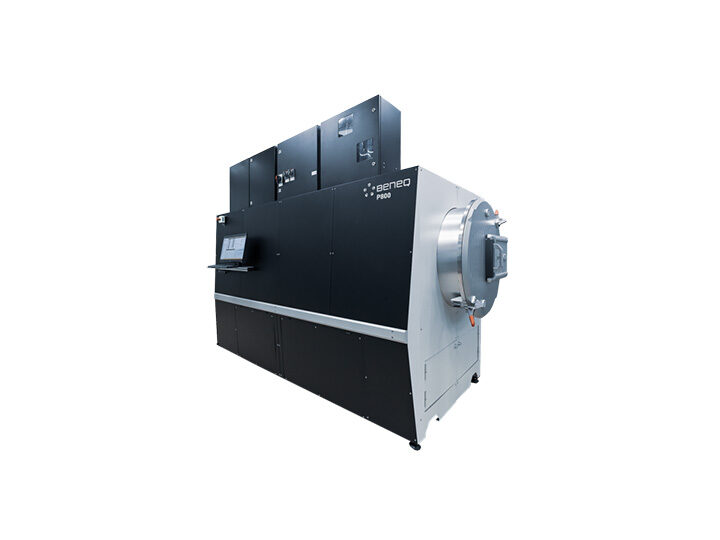

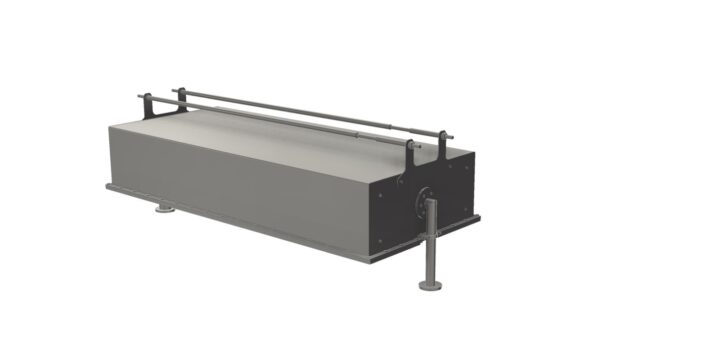

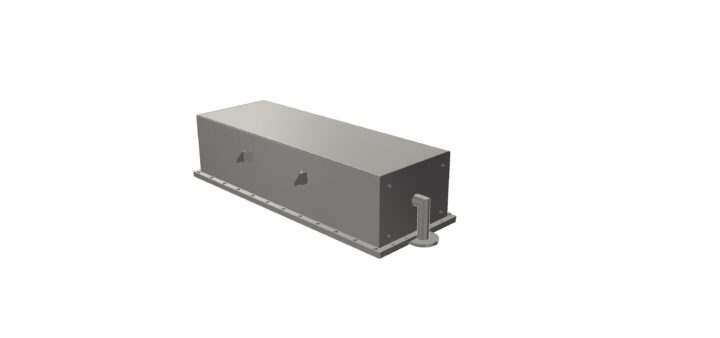

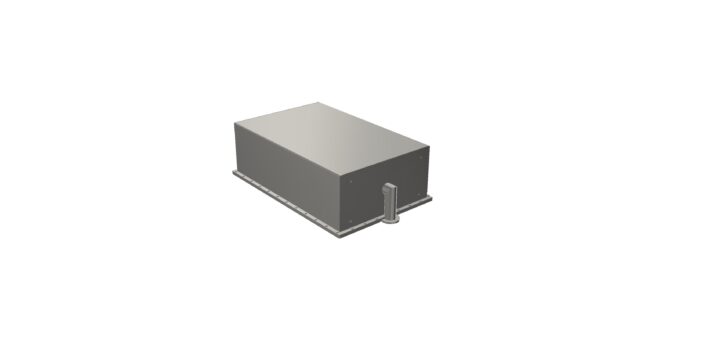

Optional reaction chamber examples. Final design available on customer request.
Ideal ALD tool for thick film stacks (> 1 μm). Thick film stacks in a large batch require significant amounts of precursor and produce a lot of residues and by-products. We have designed the P800 with high-capacity precursor sources and precursor deactivation and filtration systems to address these challenges. The Beneq P800 is a result of 35+ years of development in industrial production with large batches of >1µm thick film stacks. Robust and reliable, 24/7.
Oxides, nitrides, sulfides, metals, and more. Choosing the right process and precursor materials can be tricky. When to use high vs low temperatures? Are the precursor materials safe to use? Ask Beneq experts to help find just the right material or material combination for your application. The P800 can go from room temperature up to 550°C and easily handles gaseous, liquid and solid precursors, including toxic, pyrophoric and corrosive precursor materials.

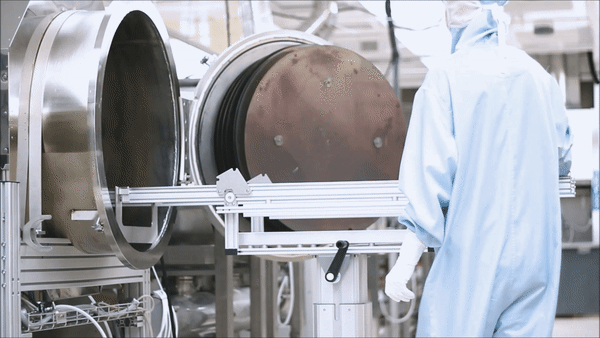

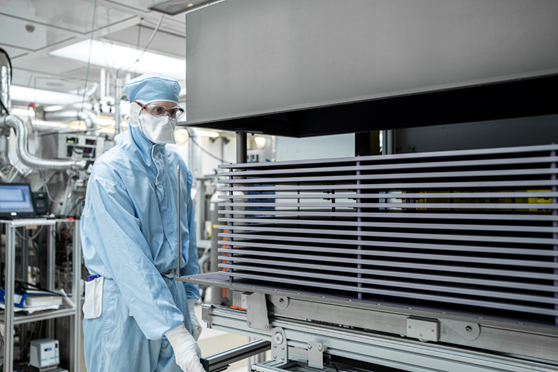

Simpler and less frequent maintenance. ALD tools depositing thick film stacks often require monthly cleaning. The P800’s high-capacity pump line filter enables the tool to run for months without maintenance even in high-volume manufacturing. Also, changing ALD reaction chambers can often take a whole day as you need them to first cool down. The P800 design cuts this down to minutes, by allowing users to simply pull out the reaction chamber and other parts that require cleaning.
Avoid unnecessary downtime from maintenance. The Beneq P800 uses multiple reaction chambers that are continuously changed between each run, so you can minimize maintenance-related production downtime.
Proprietary preheater by Beneq. Our optional preheating oven shortens the heat-up time and further increases your throughput.
| Product | P1500  | P800  | P400A  |
|---|---|---|---|
| Process temperature range | 25 – 400 °C | 50-500 °C | 50-500 °C |
| Vacuum chamber dimensions | W: 1700 mm | ø800 mm | ø400 mm |
| Reaction chamber types and dimensions | Application specific, substrate space, e.g.: 1300 × 2400 × 750 mm | Application specific, substrate space, e.g.,: – 550 × 310 × 700 mm – 380 × 380 x 900 mm, – 730 x 1200 x 10 mm | Application specific, substrate space, e.g.: – 240 × 240 × 720 mm, with 23 shelf cassette – 370 × 470 x 25 mm, with 2 shelf cassette |
| Precursor sources | 4 liquid sources, 2 heated sources, and 2 gas sources with max source capacity of 16.2 L | 5 parallel feeding lines for gas, liquid and solid precursors. Up to 10 precursors possible. | 5 parallel feeding lines for gas, liquid and solid precursors. Up to 10 precursors possible. |
| Control system | PLC control with PC user interface | PLC control with PC user interface | PLC control with PC user interface |
| Main dimensions (L × W × H) | 6195 × 2480 × 2600 (mm) | 3657 x 1455 x 2483 (mm) | 2593 x 1073 x 2265 (mm) |
